-- Determination of feeding scheme for die casting mould

Author: Li Zelin (Senior die casting mould consultant of STRONG)

When designing the feeding scheme of mould, try to get rid of the bondage of "intuition" or "inertia thinking". List all "possible" and "impossible" schemes for comprehensive analysis and comparison. Only in this way can we ensure to the maximum extent that the best scheme is adopted 2019中文字幕在线观看视频. In addition, it is definitely a good way to solve the problem of inexperience.

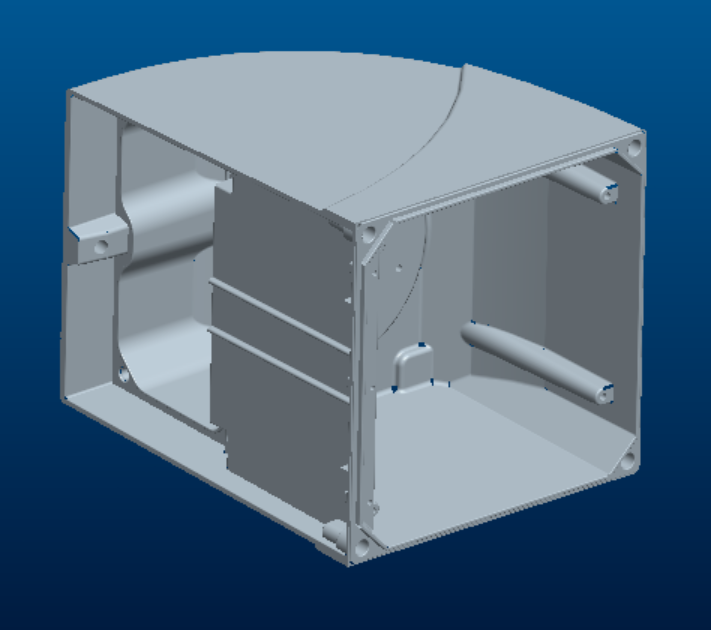

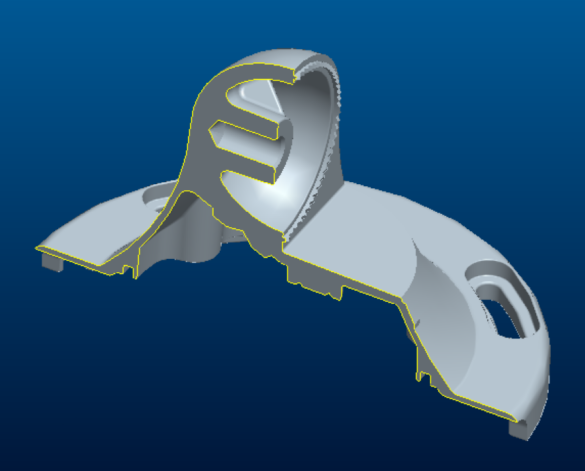

Example 1

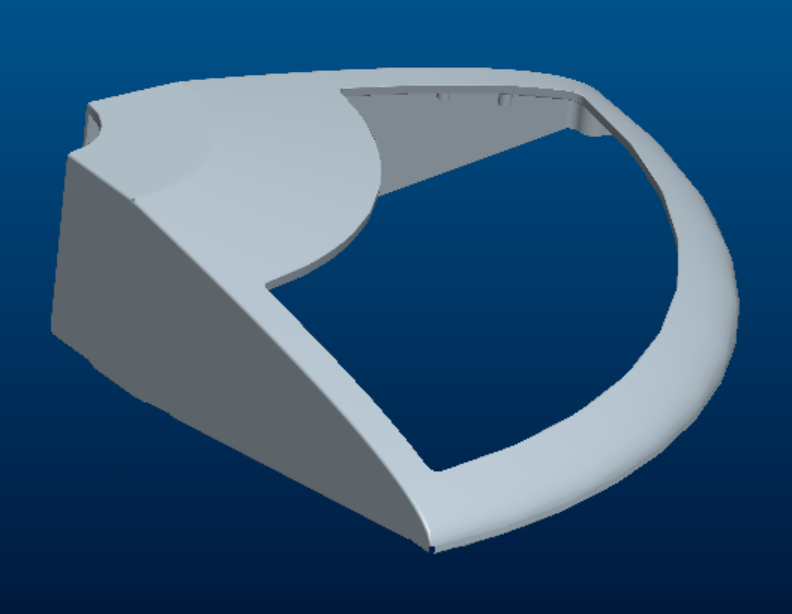

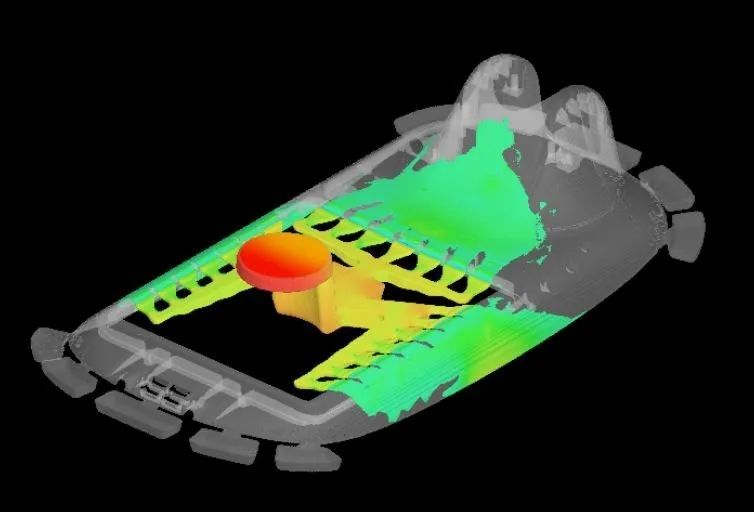

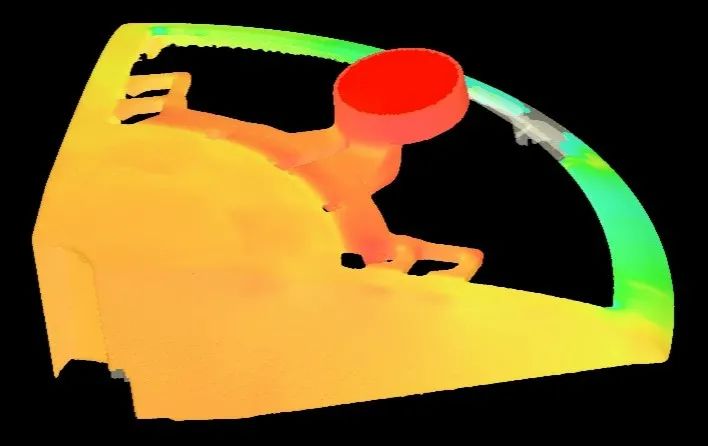

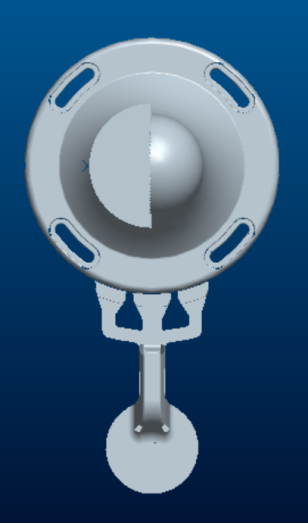

Scheme 1↓

Scheme 2↓

Scheme 3↓

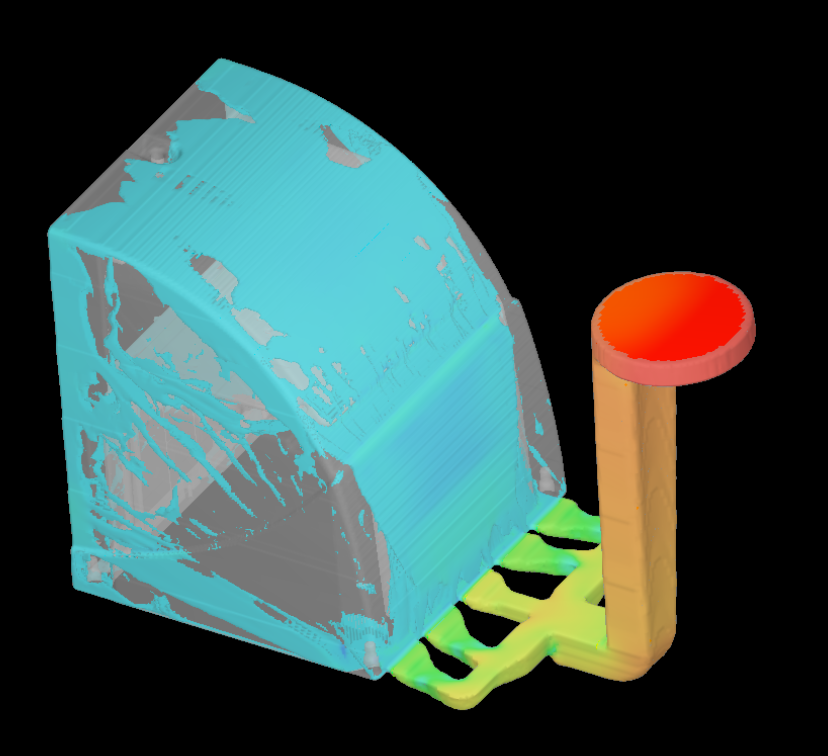

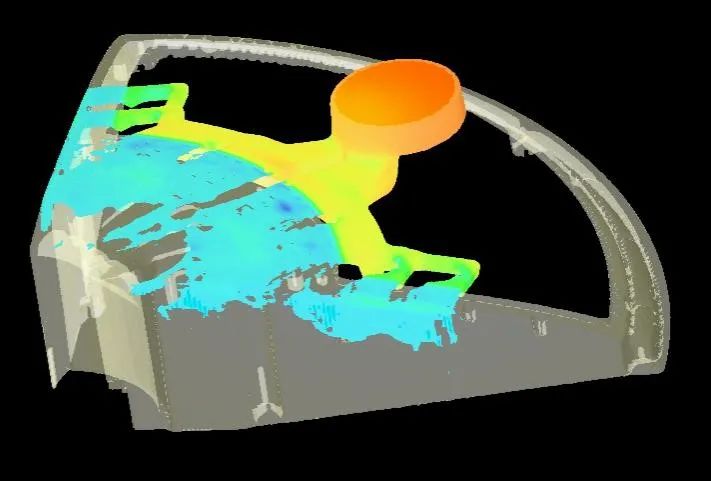

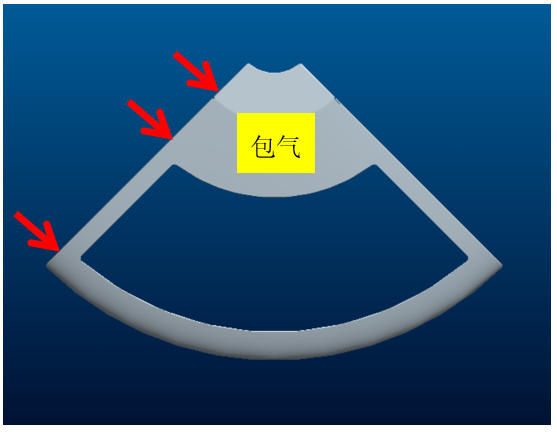

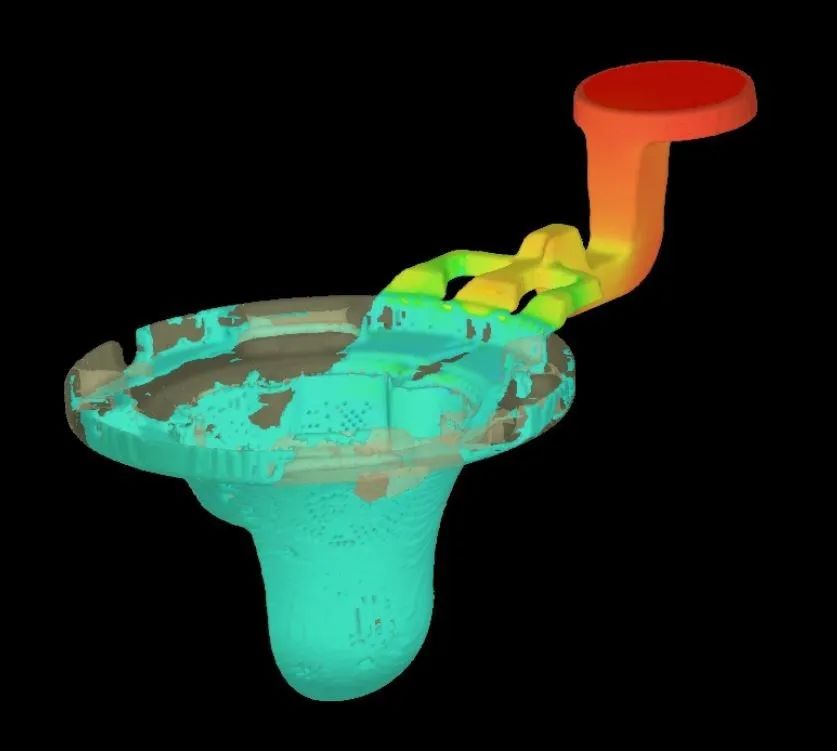

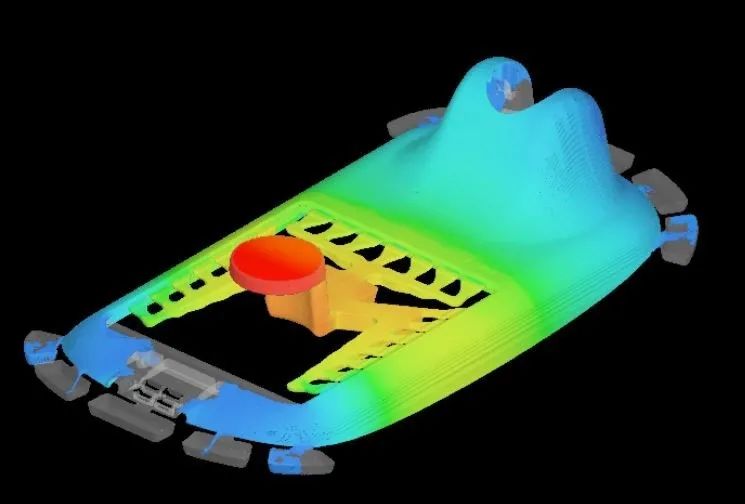

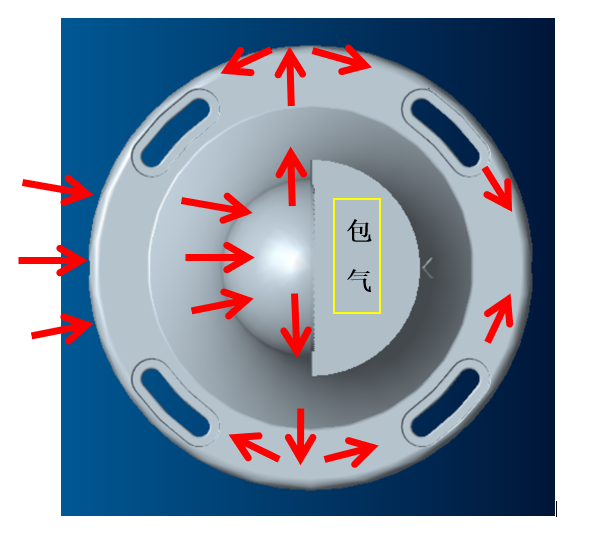

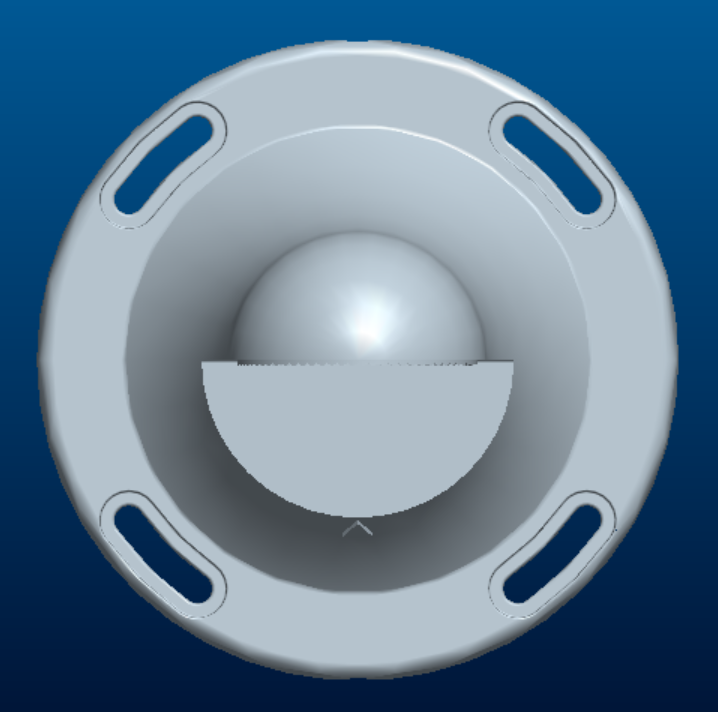

It is difficult to avoid the aeration of the small plane in scheme 1, and the last filling of the hemispherical top in scheme 2. Only scheme 3, not only can avoid the above two situations completely, but also can control the whole filling state well 人妻精品久久一区二区av. Therefore, after comparison and analysis, scheme 3 is the best.

———————————————————————————————————————————————————————————————————————————

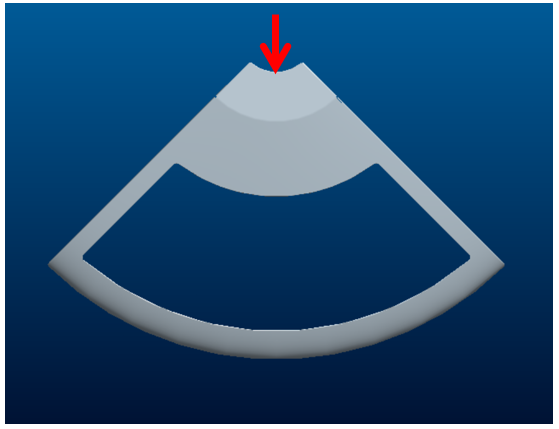

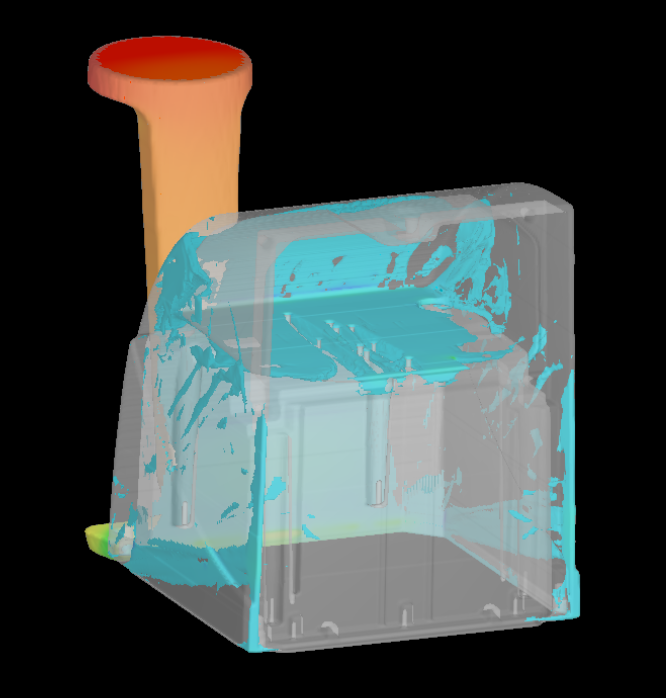

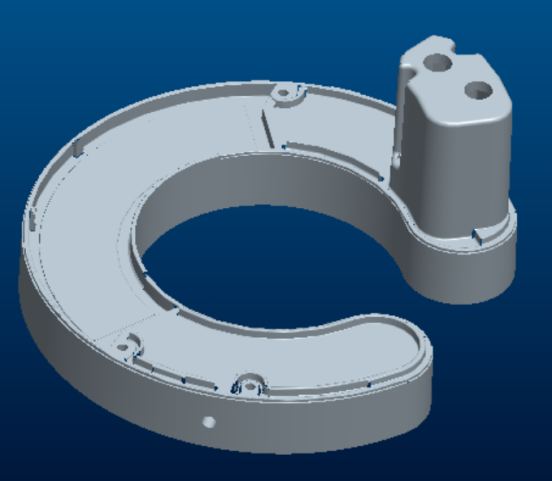

Example 2

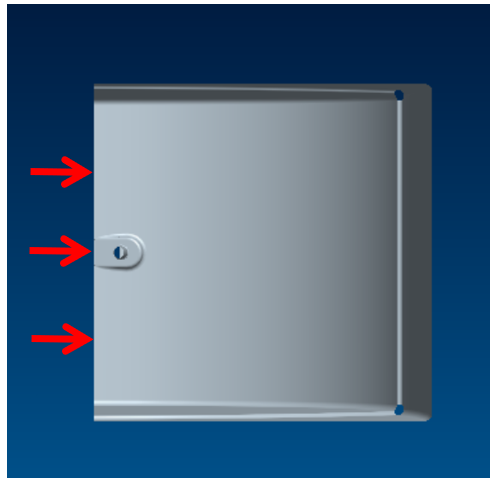

Scheme 1↓

Scheme 2↓

Scheme 3↓

Scheme 4 ↓

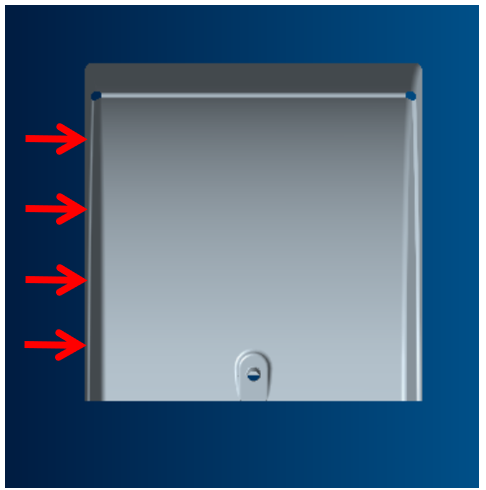

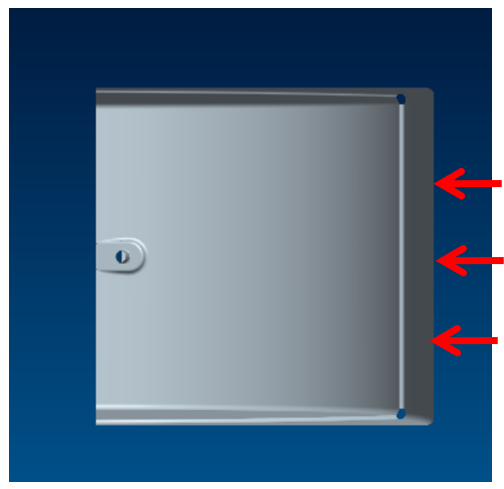

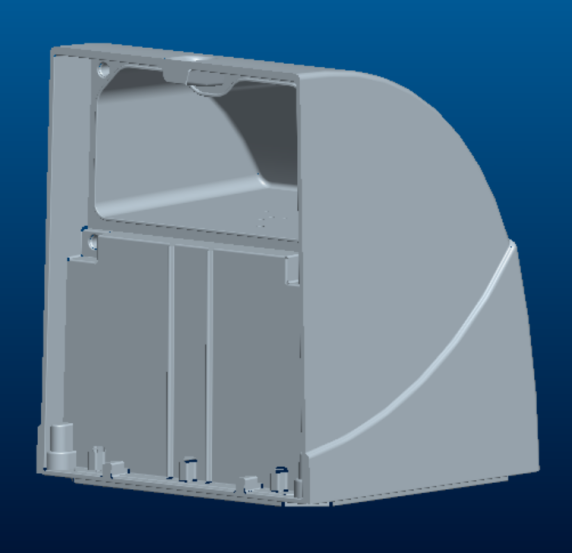

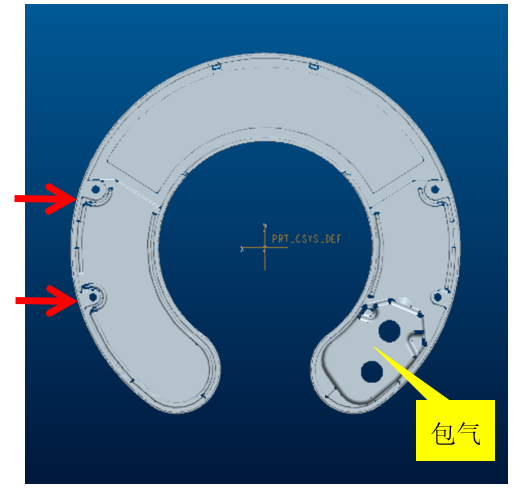

Both scheme 1 and scheme 2 inevitably form aeration at the top of the boss. Both scheme 3 and scheme 4 can solve this problem. Compared with this two schemes, the process of scheme 3 is longer and the number of refractions is more. The flow of scheme 4 is short, the number of refractions is less, and the flow pattern is easy to control. Therefore, after comparison and analysis, scheme 4 is the best 久久精品成人一区二区三区蜜臀.

—————————————————————————————————————————————————————————————————————

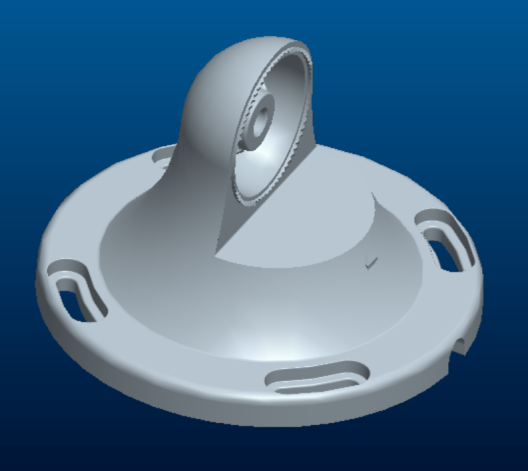

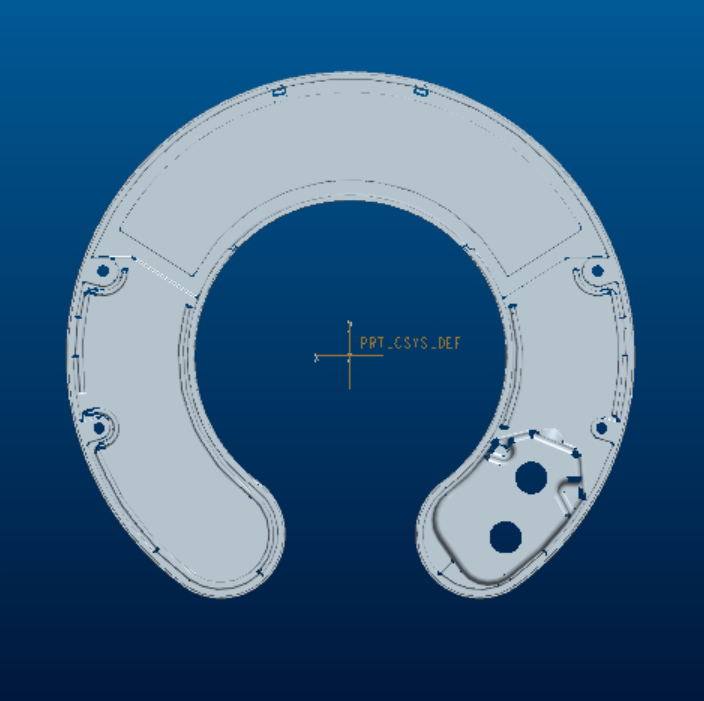

Example 3

Scheme 1 ↓

Scheme 2 ↓

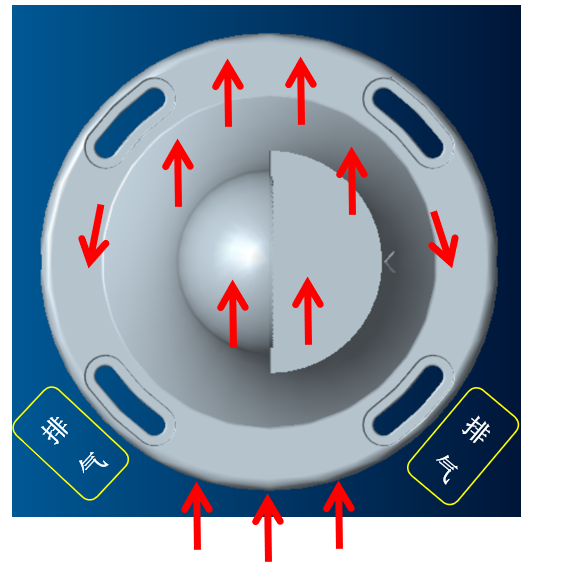

In scheme 1, the water inflow is too narrow and the flow rate is not enough to meet the filling requirements. The scheme 2 has very high requirements for the design of flow channel. If there is a slight deviation, there will be trapped gas. And the adjustable process space is limited 国产黄色视频在线播放. Therefore, both schemes are not ideal.

Scheme 3↓

Scheme 4 ↓

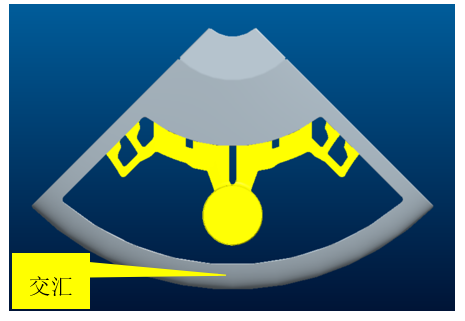

The aisle in the middle of scheme 3 lengthens the filling process, which is not conducive to the transmission of pressure. When eddy current is generated on both sides of the product at last, it is impossible to eliminate die casting defects by increasing the pressure. Scheme 4 can solve these problems completely. Moreover, the structure is very compact. Therefore, after comparison and analysis, scheme 4 is the most reasonable 亚洲V无码V在线影院.

—————————————————————————————————————————————————————————————————————

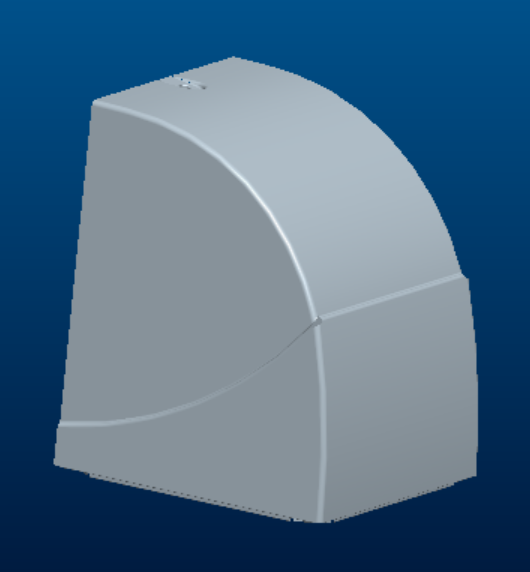

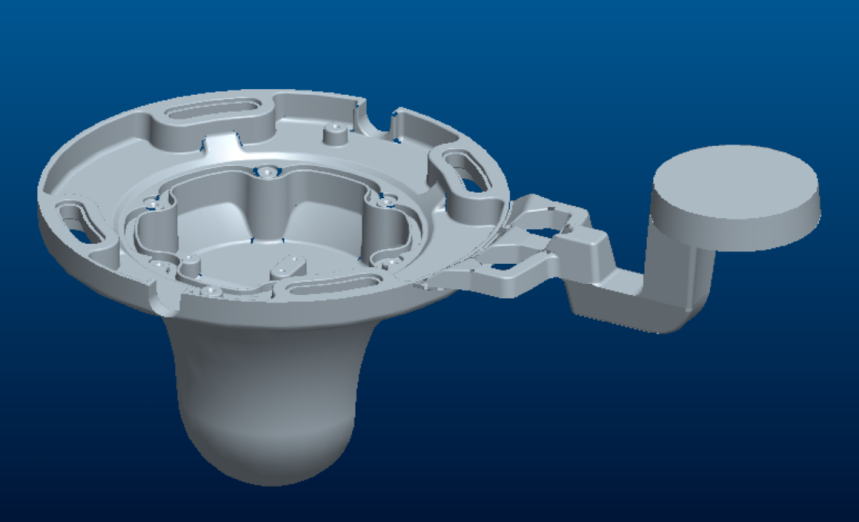

Example 4

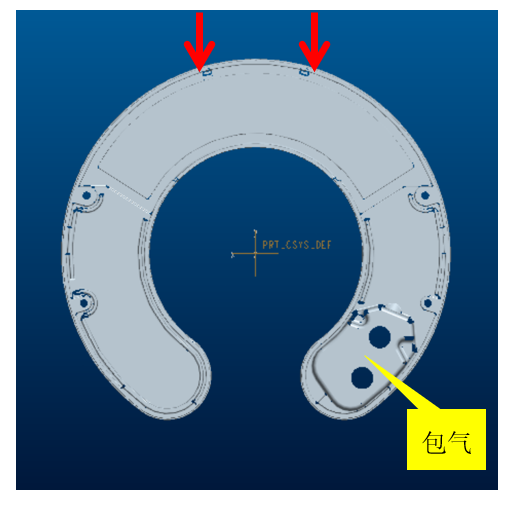

Scheme 1↓

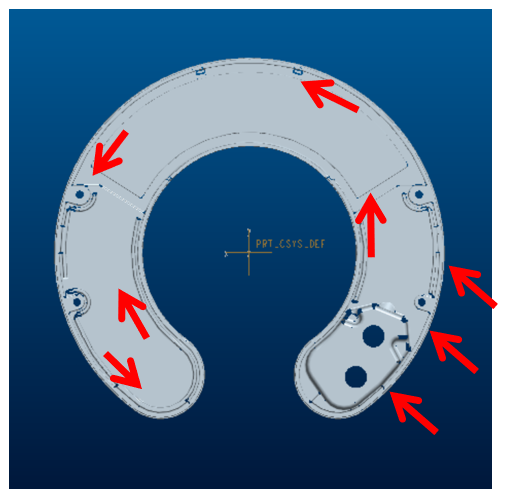

Scheme 2 ↓

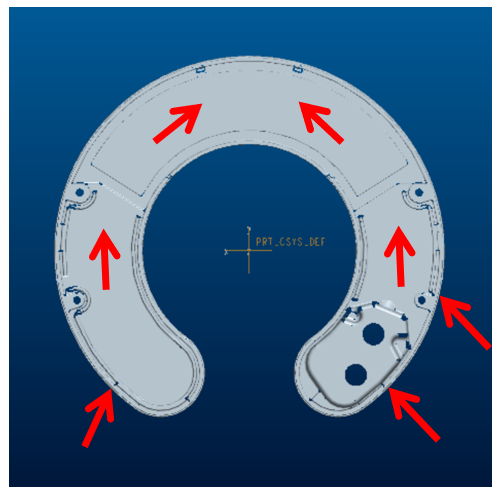

Scheme 3↓

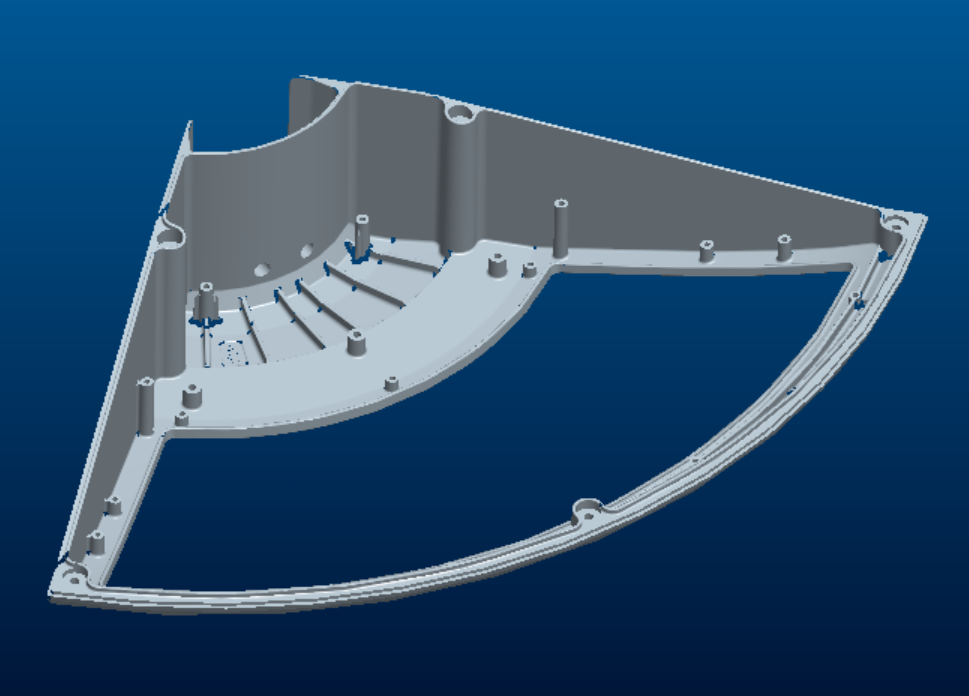

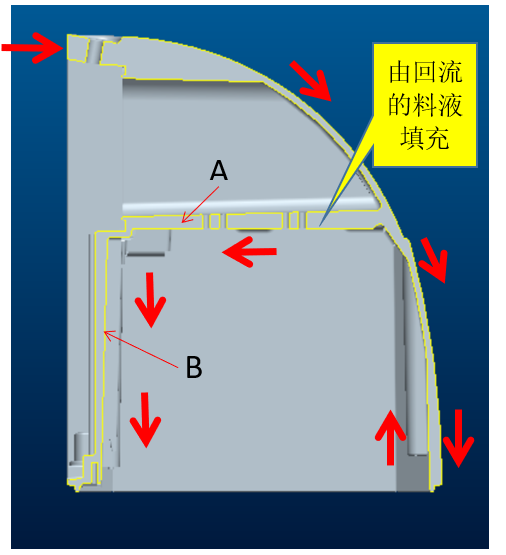

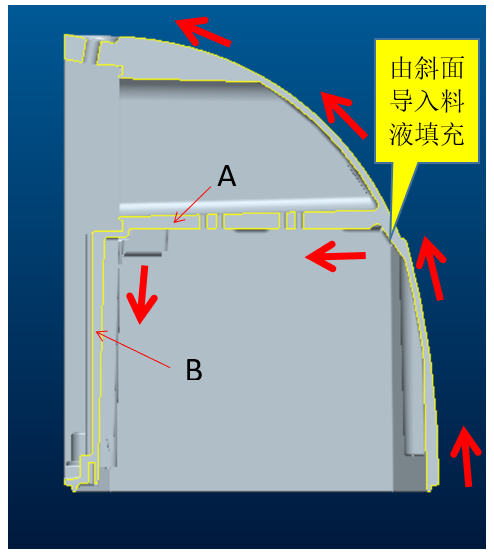

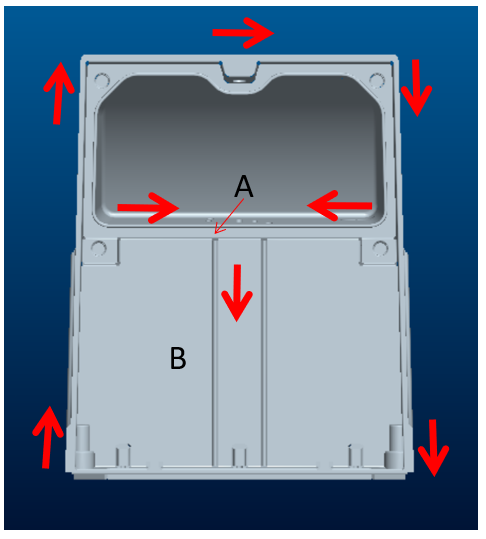

The biggest difficulty of this device is to solve the problem of filling on both sides of A and B, and to avoid gas trapping. In the scheme 3, a small slope is specially added to the feed liquid, which successfully solves the problem. And other solutions, even if added slope, also impossible to achieve. Therefore, the scheme 3 is the most reasonable 东京热无码视频.

———————————————————————————————————————————————————————————————————————————

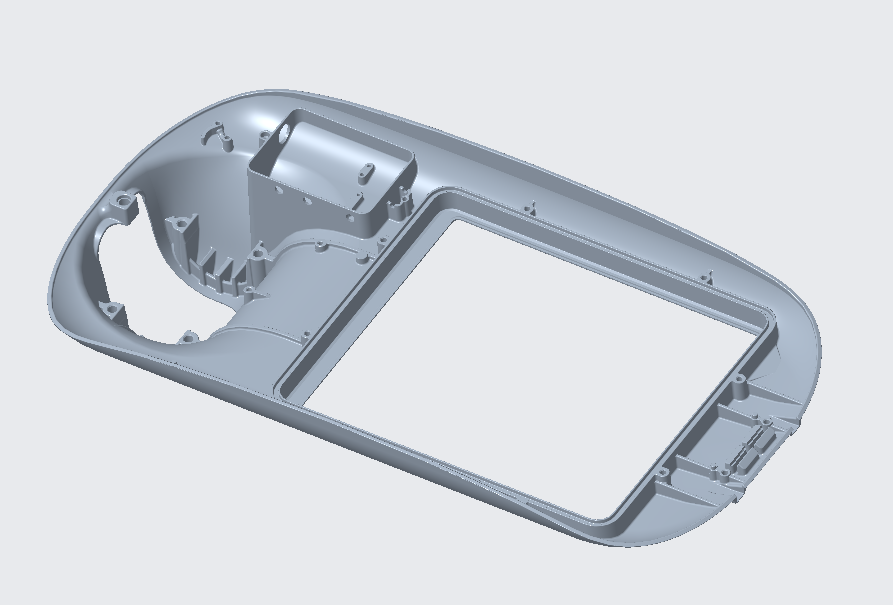

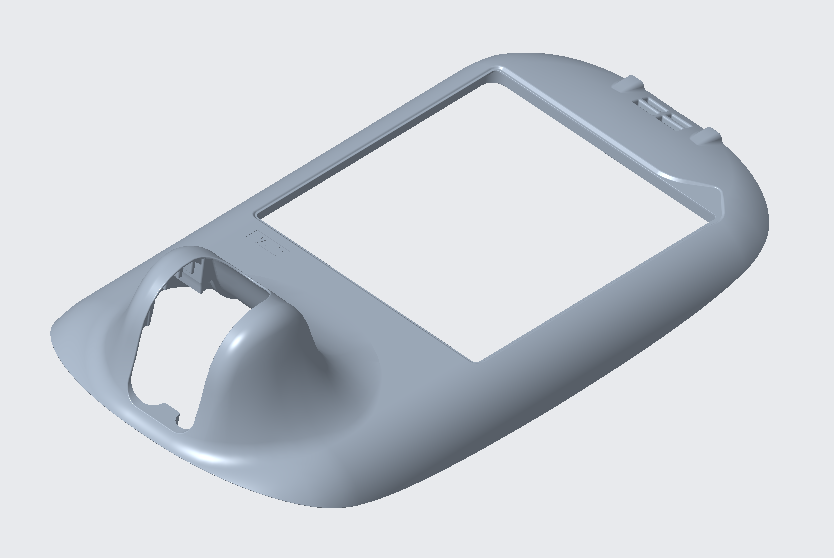

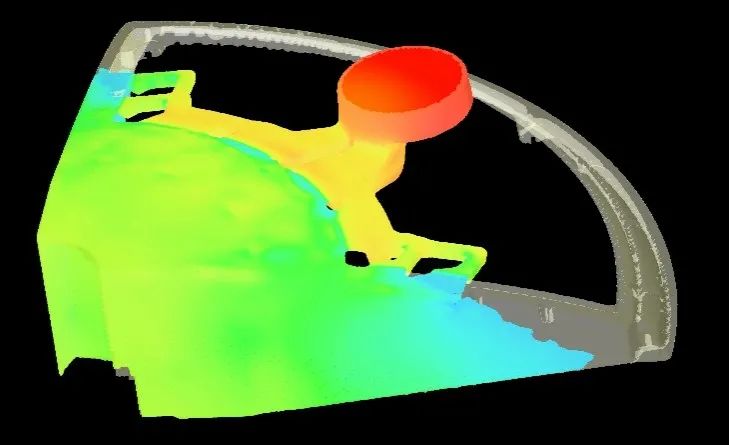

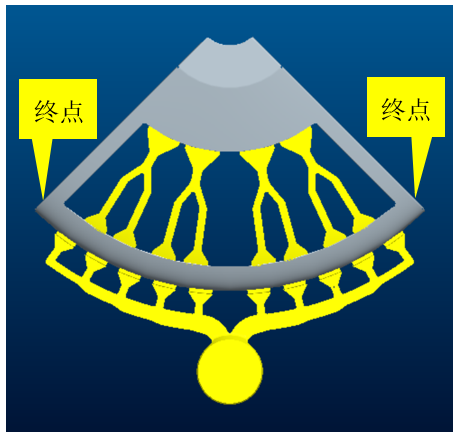

Example 5

Before determining the feeding scheme of the mould, we must "get out" and get rid of the "bondage" to see clearly and comprehensively and get the correct results. Jump out of the "boundary" to get the "right result" 蜜桃av岛国董欣天美传媒.
